HIGH-DETAIL MILITARY Design FOR PRESENTATION
Dual Machine Guns – Static Display Models
COMPANY
History Teacher
ROLE
3D CAD Modeler
EXPERTISE
SolidWorks Modeling | Assembly | Rendering for Presentation
YEAR
2024
Project description
This project involved creating two high-detail static machine gun models for visual and educational presentation. The goal was to showcase realistic design aesthetics without internal motion simulation.
Timeline
Completed in 2 weeks, from reference analysis to final renderings, while managing concurrent CAD assignments.
Background
The client required accurate yet visually striking models of two machine guns to be used in a digital presentation. The focus was on external detailing, realistic proportions, and a clean render setup suitable for slideshows or videos.
Process
A methodical modeling and rendering workflow, focused on external precision, realistic proportions, and visual appeal.
Reference Study & Planning

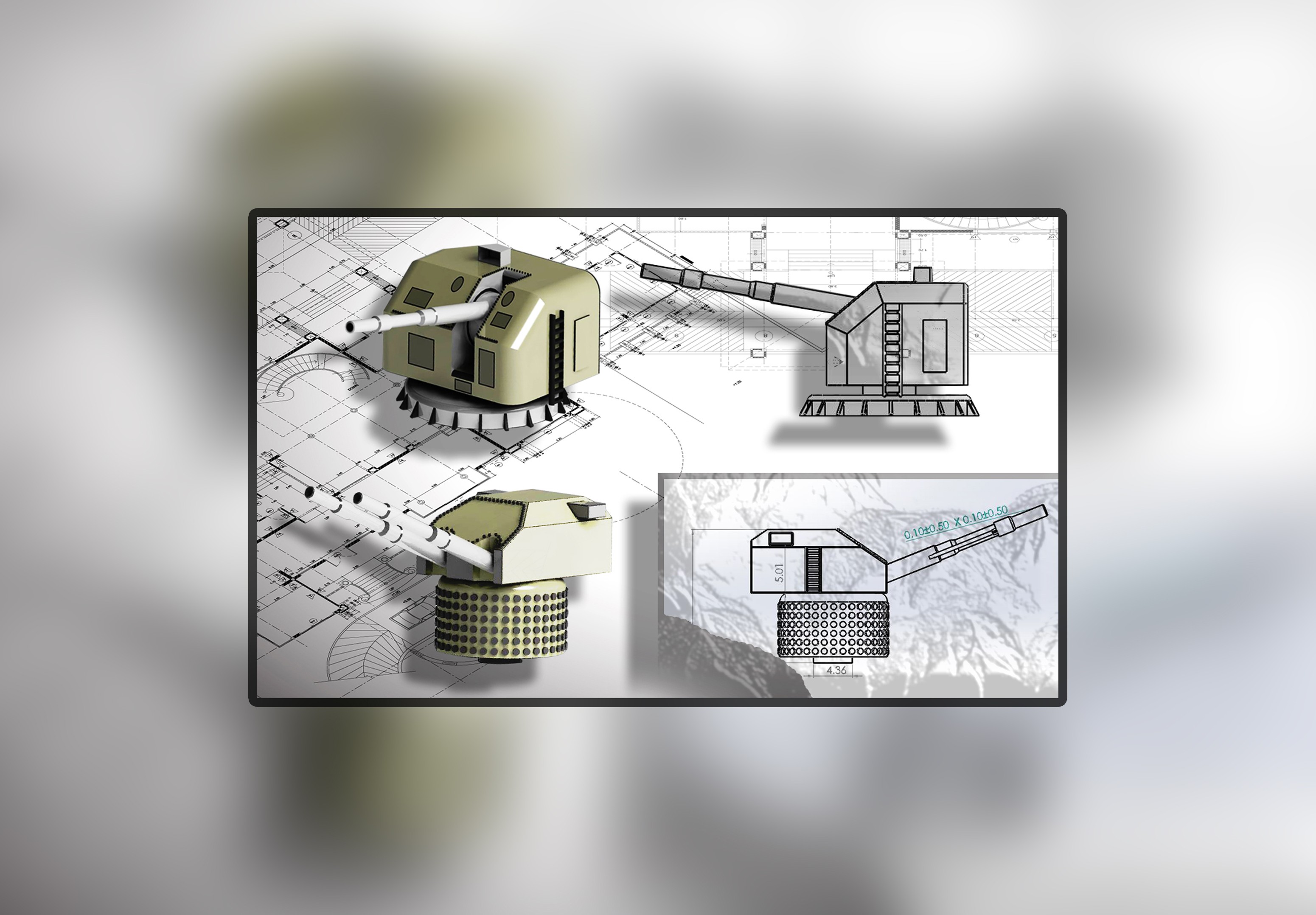

Gathered image references and dimensional data from real-world firearm schematics. Defined presentation angles and important external features to highlight.
Modeling

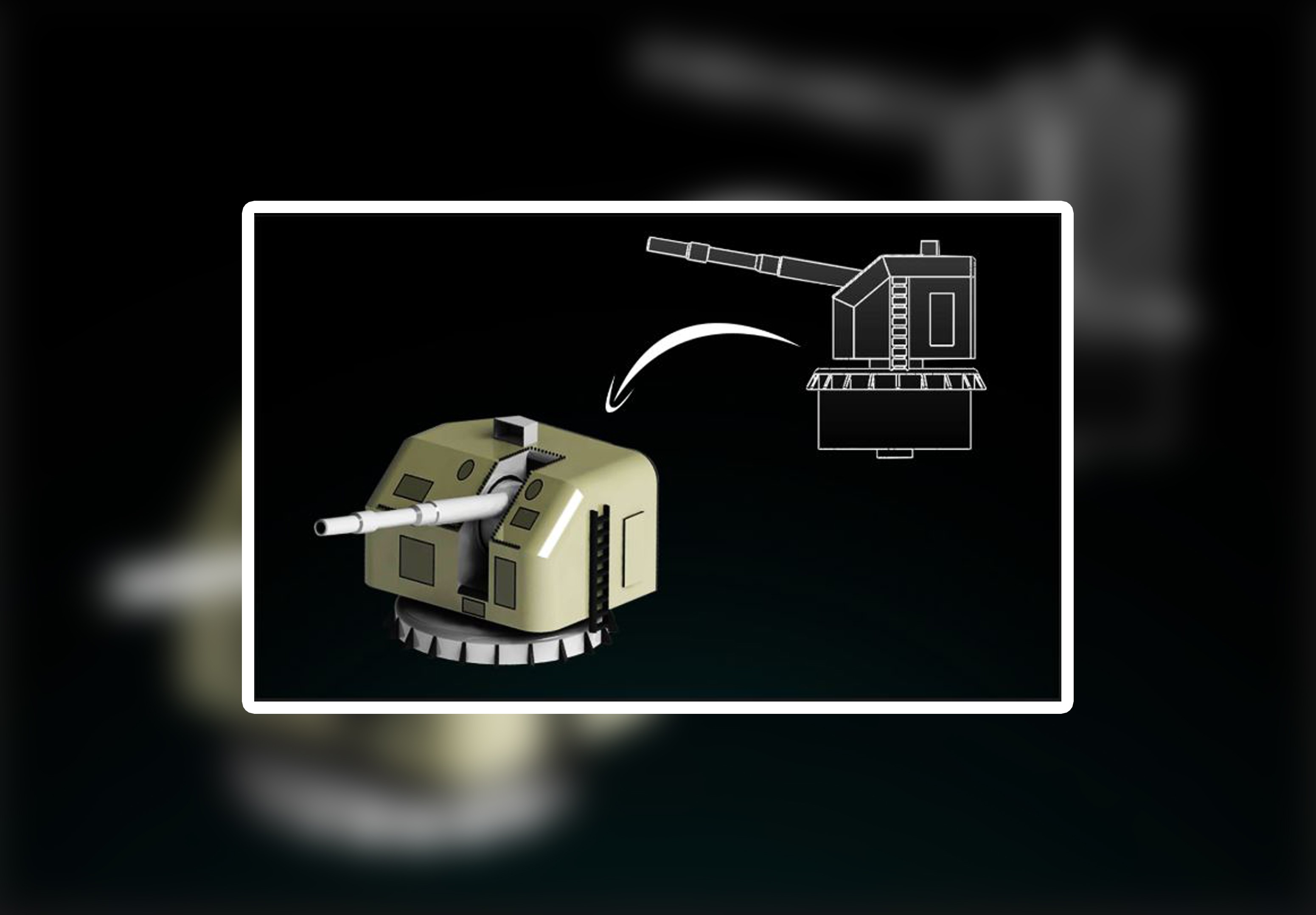

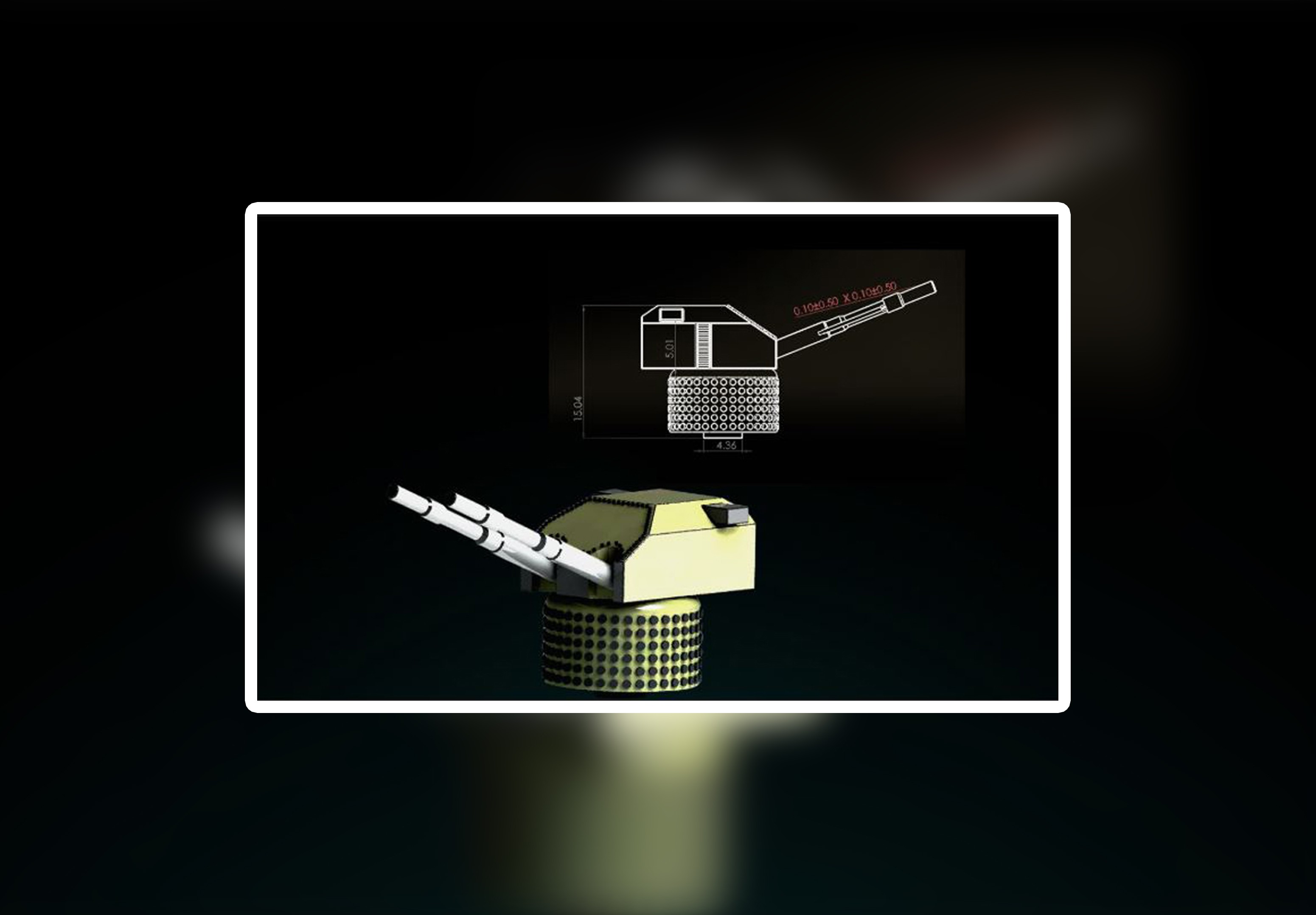

Modeled both weapons part-by-part in SolidWorks with a focus on surface detail and silhouette accuracy. Added features like barrels, receivers, stocks, handles, and mounts.
Assembly
Grouped and organized components for easy rendering alignment and scalability across scenes. Ensured the models were optimized for fast rendering while preserving detail.
Rendering

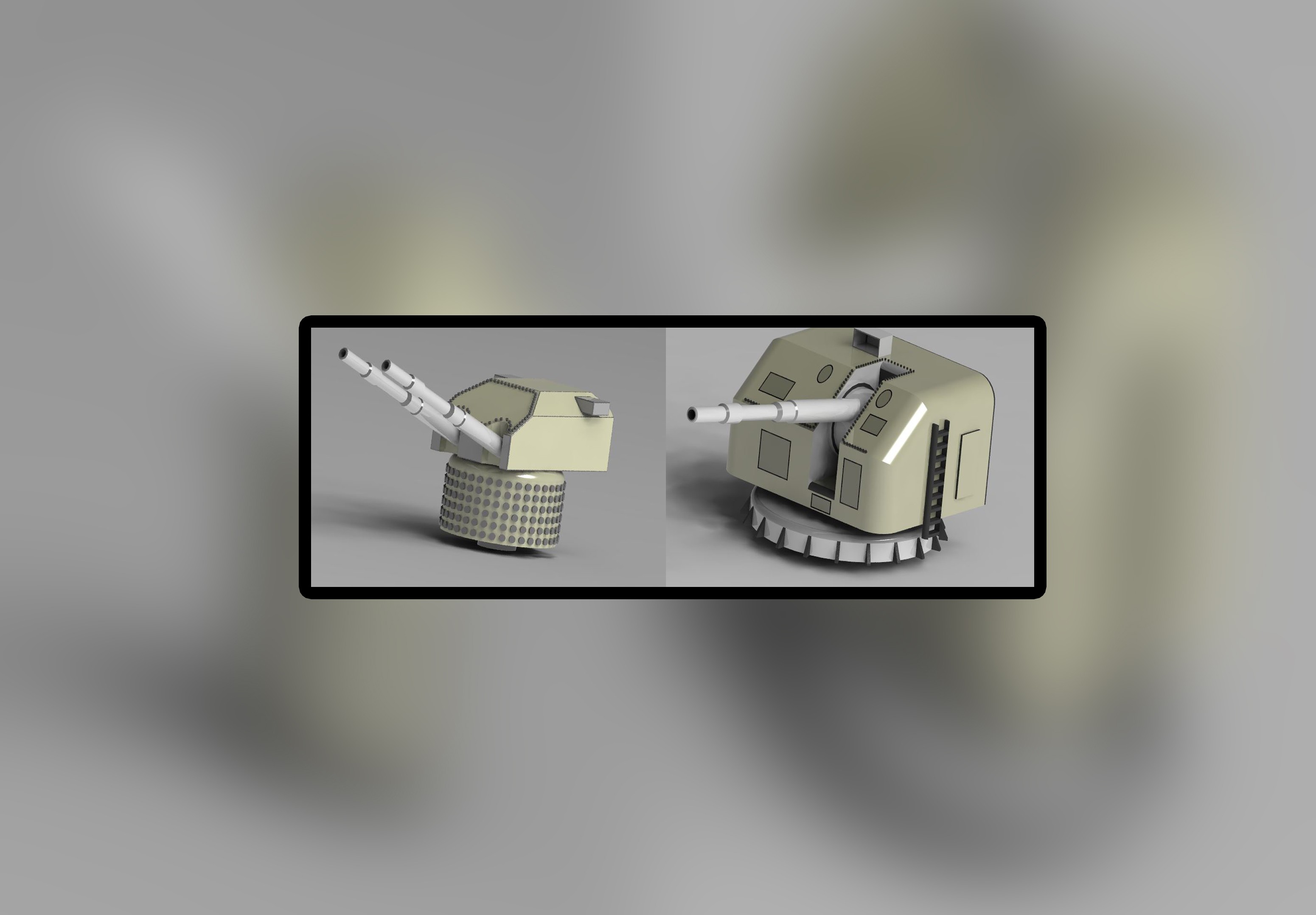

Used PhotoView 360 to create dramatic lighting, shadows, and material textures (metal, polymer, matte black). Final renders were optimized for PowerPoint and video use.
Solution
Delivered two polished, presentation-ready models suitable for defense demos, educational slides, or promotional visuals.
High-Fidelity Visuals
Each model reflects real-world design with sharp geometry and clean detailing.
Optimized for Presentation
Clean compositions and neutral backgrounds make the renders perfect for slideshows and explainer videos.
Flexible Use Cases
Models structured for easy reuse in different visual formats or animations.
